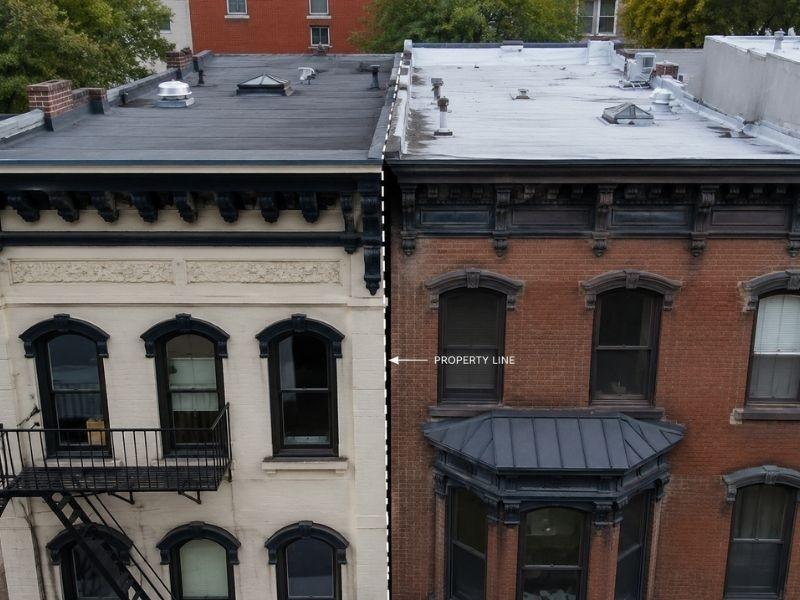

Attached buildings turn a simple survey question into a layered one. When two structures share a wall, the property line runs somewhere through or beside construction that both owners depend on, and nobody can see the line by looking at the buildings. An ALTA survey on this kind of property has to sort out where the parcel ends, what the wall is doing there and how features above and below the street complicate both answers.

Establishing the Parcel Line Beneath Attached Construction

The boundary comes first, and attached construction makes it harder to find. Corners that would carry monuments on an open lot sit under buildings here, so the surveyor works from what remains reachable. Deed research establishes the record dimensions of the parcel and its neighbors. Plats supply the original block geometry, and monuments recovered along the street or at the ends of the block anchor the math to the ground.

Building relationships then join the analysis. The positions of walls, the thickness of shared construction and the way structures meet all carry evidence about where the original builders understood the line to run. A wall centered on the record line supports the record. A wall sitting entirely on one parcel tells a different story, and the surveyor has to reconcile the physical facts with the documentary ones before certifying anything. On old blocks where deeds overlap or fall short, that reconciliation is the heart of the job.

Classifying Walls That Serve More Than One Property

A wall between two buildings invites a legal label, and the surveyor has to resist applying one too quickly. Party wall is a term with legal weight. It implies rights and obligations between the owners, and those rights come from documents, agreements or law rather than from the wall’s appearance.

The survey documents what can be measured. The wall’s position relative to the boundary, its thickness, which structures bear on it and how it relates to each parcel all belong on the plat as physical facts. Whether the wall is legally a party wall, who must maintain it and what happens if one building comes down are questions the governing documents answer. When a recorded party wall agreement exists, the surveyor can reference it and show its terms graphically. When no document surfaces, the plat presents the physical condition and leaves the legal conclusion unstated, because an unsupported label on a certified survey creates exactly the kind of confusion the survey exists to prevent.

Measuring Projections Above and Below the Ground Plane

The ground-level footprint tells only part of the story on attached properties. Buildings project past their walls in both directions, and an ALTA review has to look up and down as well as across.

Above grade, cornices, balconies, fire escapes, bay windows and rooftop features can extend across the vertical plane of the boundary even when the wall below sits perfectly inside it. A cornice reaching two feet over the neighbor’s parcel is an encroachment whether or not anyone can touch it. Below grade, foundations spread wider than the walls they carry, and older commercial blocks hide vaults, coal chutes and connecting tunnels under sidewalks and adjoining parcels. Each projection gets measured, dimensioned and shown, because a lender reading the survey needs to know what crosses the line at every level, not just at eye level.

Measuring these features takes deliberate fieldwork. Crews capture the projecting elements with enough geometry to state how far past the boundary plane each one extends, and the numbers go on the plat rather than a vague symbol.

Comparing Physical Conditions With Recorded Agreements

The record and the ground each hold half the picture. Title work on attached properties turns up party wall agreements, maintenance covenants, access provisions, reciprocal easements and exceptions that reference structures by name, and every one of those documents describes a physical condition the survey can test.

The comparison runs both directions. Sometimes the field confirms the record, and the wall or passage sits exactly where the agreement places it. Sometimes the field contradicts it, and the agreement describes a wall that was rebuilt in a different position or an access way that a renovation closed. Sometimes the field shows conditions no document explains, like a doorway between buildings or pipes crossing the line with no record right behind them. Each finding matters to the parties and the insurer, and the survey’s job is to surface all three kinds honestly so the title company can underwrite what actually exists.

Presenting Complex Building Relationships Clearly on the Plat

A dense downtown boundary can defeat a standard plat scale. Ten significant conditions may occupy fifteen feet of shared wall, and a single line with a label cannot carry that load. Clarity becomes its own task.

Enlarged details solve most of it. An inset drawn at a larger scale opens up the congested area, giving each dimension, encroachment and reference room to read. Vertical information joins where it earns its place, with notes or sectional sketches showing the elevation of an overhang, the depth of a vault or the level at which a projection crosses the line. Labels tie each condition to the record document behind it, and plain notes state what the surveyor observed where graphics alone would mislead.

The measure of success is the reader. An attorney, a lender or a future surveyor picking up the plat should understand every shared structure, every projection and every documented right without visiting the site. On attached properties, that clarity is the product.
