Every building plan is based on assumptions about the ground. Designers assume where water will flow, how high the floor should sit, and where a driveway can meet the street. When those assumptions are wrong, the fixes show up later as redesigns, change orders, and delays. The cheapest time to get the ground right is before anyone starts drawing.

A topographic survey is a detailed map of a site’s surface. It shows ground elevations, slopes, and the location of physical features such as buildings, trees, pavement, and visible utilities. Architects and engineers use it as the base for their design work. Without it, they’re working from guesses or outdated records.

If you’re planning a new home, an addition, or a commercial building, order the topographic survey early. It should be one of the first steps, right after you confirm the property boundaries.

What a Topographic Survey Shows Before Design Begins

A topographic survey shows the shape of the land and what’s already on it. The final drawing uses contour lines to show changes in elevation. Each contour line connects points at the same height, so lines drawn close together mean a steep slope and lines spread apart mean flatter ground. The drawing also includes spot elevations at important points like curbs, doorways, and drainage structures.

Beyond elevations, the survey maps the physical features your designer needs to work around. Common items include:

• Existing buildings, sheds, and retaining walls
• Driveways, sidewalks, curbs, and parking areas
• Trees, often with their size and type noted
• Fences and walls along or near the property lines
• Manholes, catch basins, valves, and other visible utility features

The level of detail depends on the project. A small addition may need less than a new commercial building. Talk with your designer before ordering the survey so the surveyor collects exactly what the design team needs.

Mapping Elevations, Slopes, and Existing Site Features

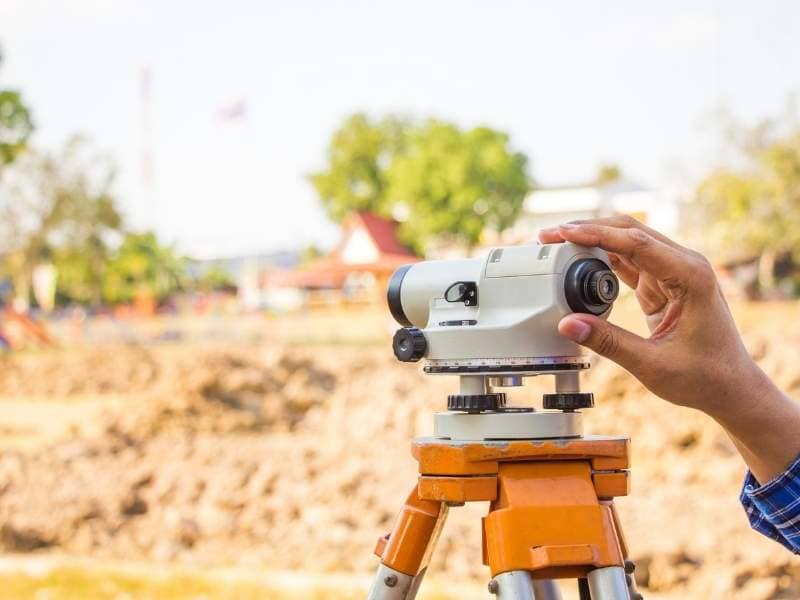

Surveyors collect elevations by measuring hundreds or thousands of points across the site. Each point is tied to a benchmark, which is a fixed reference with a known elevation. Using the same benchmark keeps every measurement consistent. It also lets designers compare your site to nearby streets, sewers, and public records.

Slopes matter more than many owners expect. A lot that looks flat can still fall several feet from front to back. That change can affect where the house sits, how deep the foundation goes, and whether steps or retaining walls are needed. The survey turns those small changes into numbers the design team can use.

Existing features also need accurate locations. A mature tree near the planned driveway may need to be saved or removed. A neighbor’s garage close to the line may affect how water drains between lots. The more complete the site picture, the fewer surprises your team will face during construction.

Using Topographic Data for Drainage and Grading Plans

Drainage and grading plans depend directly on topographic data. Grading is the process of shaping the ground so water moves where it should. A good grading plan moves runoff away from buildings and toward approved drainage areas. The engineer can’t design that plan without knowing the current elevations.

Water problems are among the most common complaints after construction. A foundation set too low can collect water. A yard graded the wrong way can send runoff toward the neighbor’s property. Many of these problems start with poor elevation information during design.

Stormwater rules vary by municipality and project size. Some sites may need detention, which means temporarily holding water on site before releasing it slowly. Others may need specific drainage connections or erosion controls. Your engineer can explain what applies, and the topographic survey gives them the data to design it.

Coordinating Building Layout With Existing Site Conditions

A topographic survey helps designers place the building where it works best with the land. The goal is to fit the structure to the site instead of forcing the site to fit the structure. That can reduce the amount of soil that needs to be moved. It can also make access, drainage, and utility connections easier.

Designers use the survey to set the finished floor elevation, which is the planned height of the building’s main floor. They also plan how the driveway meets the street and where walkways connect to entrances. If the ground slopes sharply, the survey helps decide whether a walkout basement, steps, or retaining walls make sense.

Utility connections deserve careful attention. The survey can show visible features like manhole covers and valve boxes. The depth of a sewer pipe, called its invert elevation, may also be measured at accessible structures. Keep in mind that the survey may not show every buried line, so contractors should still request utility locates before digging.

Reducing Design Changes Before Construction Starts

Accurate topographic data reduces the need for design changes once construction begins. Changes made on paper are fast and cheap. Changes made after excavation are slow and expensive. A good survey helps move the hard decisions to the design phase, where they belong.

Common problems a topographic survey can help prevent include:

• A foundation that sits too low for proper drainage
• A driveway that’s too steep to meet the street safely
• Retaining walls added late because the grade was underestimated
• Utility connections that don’t line up with existing lines

Timing matters here. Order the topographic survey before the architect or engineer starts serious design work. Many surveyors can combine it with a boundary survey, which confirms the property lines. If your permit or construction schedule depends on the survey, contact a surveyor early and ask how long the work will take.

Frequently Asked Questions

What is a topographic survey?

A topographic survey is a map that shows the shape and features of a piece of land. It uses contour lines and spot elevations to show how the ground rises and falls. It also locates buildings, trees, pavement, and visible utilities. Designers and engineers use it as the base for site plans.

Do I need a topographic survey to build a house?

Many residential projects benefit from a topographic survey, especially on sloped or uneven lots. Some municipalities or designers may require one as part of the plan set. Requirements vary by location and project type. Ask your architect, engineer, or building department what’s needed for your site.

How is a topographic survey different from a boundary survey?

A boundary survey shows where the property lines are. A topographic survey shows the shape of the ground and the features on the site. Many building projects need both types of information. Surveyors often combine them into one drawing to save time.
